TST-A Series Semi-Auotomatic Triaxial Machine
TST-A Series Semi-Automatic Triaxial Test System
General Description
The semi-automatic triaxial testing system is adopting the most advanced technology. It is integrated the technology of mechanic, electronic, fully-automated control and sensor automated checking.
STANDARD
· ASTM D4767
· ASTM D2850
· ASTM D2166/D2166M

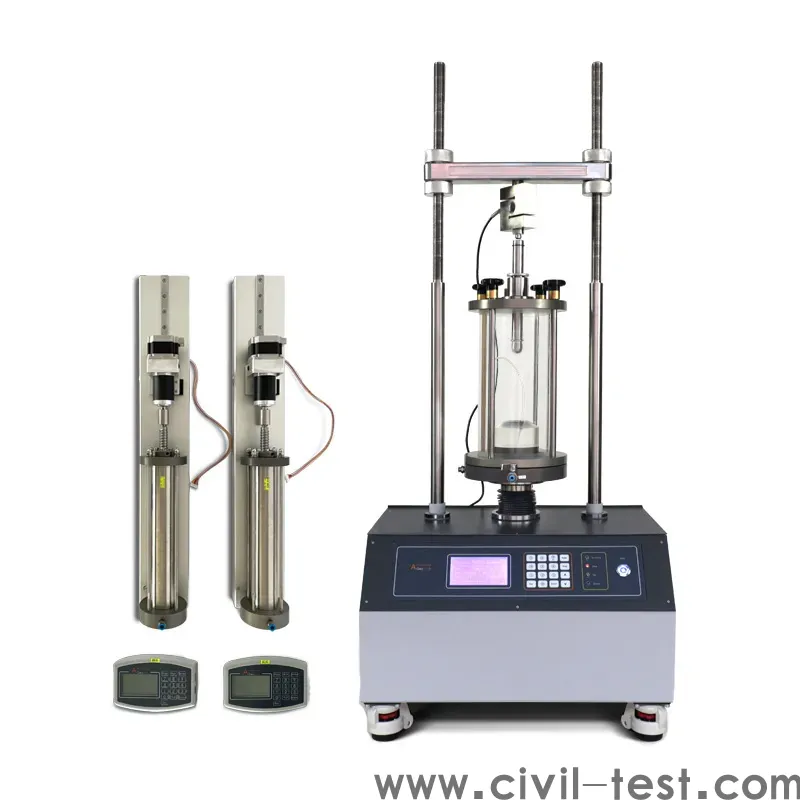

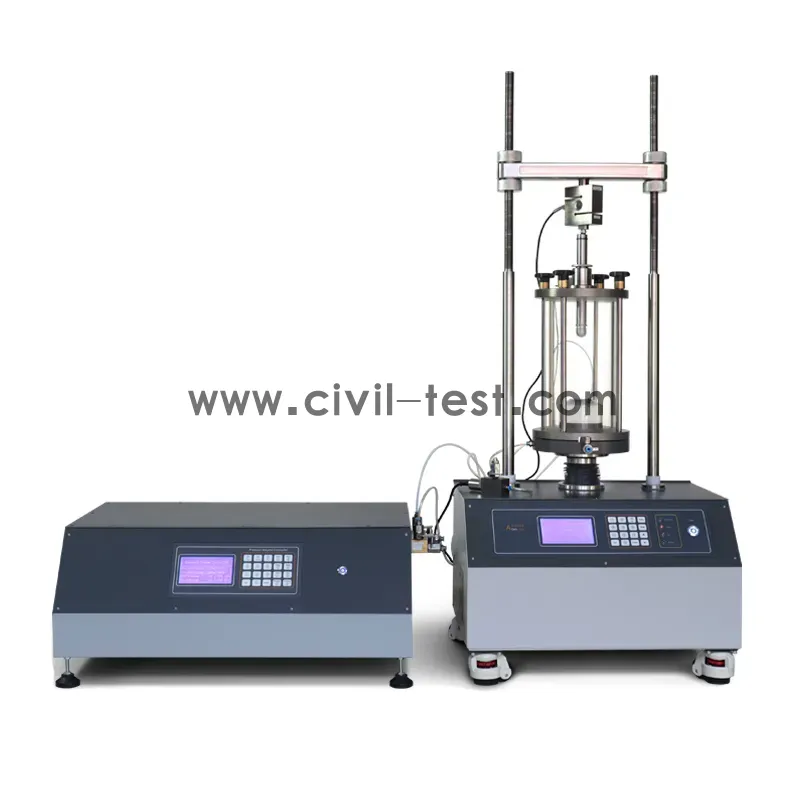

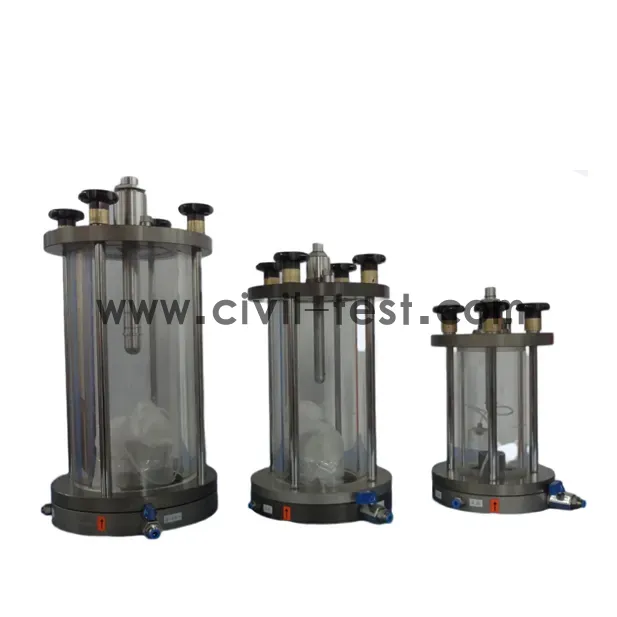

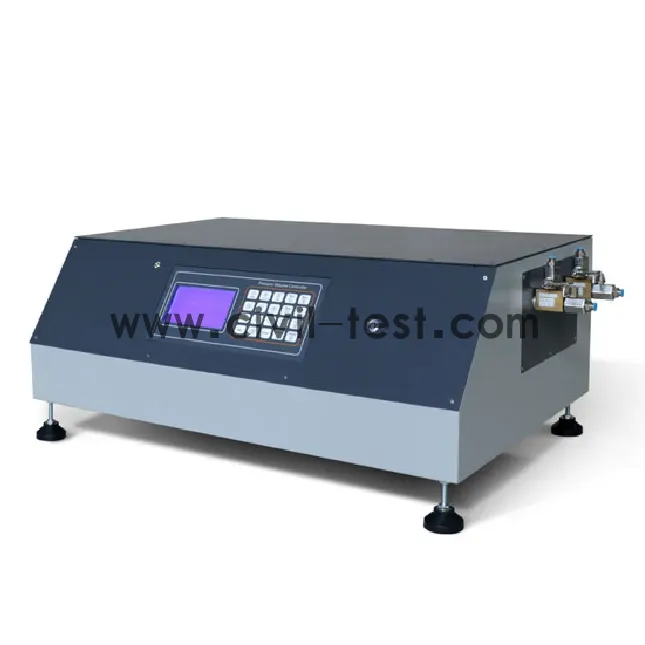

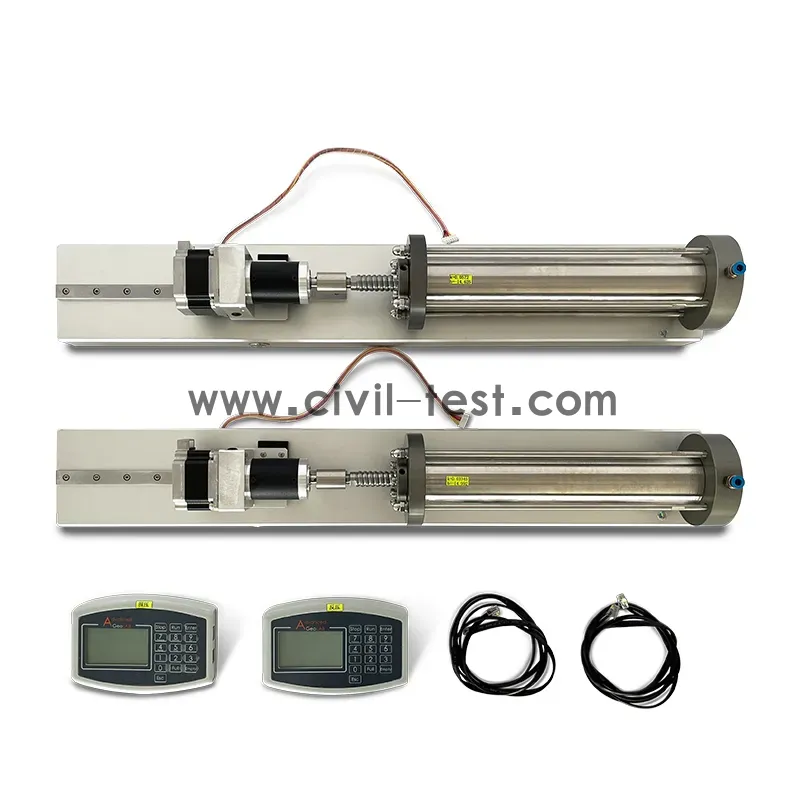

The device consists of Triaxial Loading Frame, Advanced Pressure Volume Controller (APVC), Triaxial Cell, various sensors,
temperature control devices and AdvancedGeoLAB® software. The range of Triaxial Loading Frame has been designed to be used as part of computer controlled triaxial system or as a stand alone unit. The Triaxial Loading Frame and Advanced Pressure Volume Controller both are equipped with the LCD graphical display and panel keypad.
TEST-CONTROL MODULES
S# | Test -Control Modules |
01 | Data Acquisition Module |
02 | Back Pressure Saturation Test |
03 | Consolidation in same direction and consolidation in different direction (pre contact) test; |
04 | (U-U test)- Unconsolidated – undrained test; |
05 | (C-U test)- Consolidation – undrained test (C-U test); |
06 | (C-D test)- Consolidation – drainage test |
