SX-TK-5A Automatic Direct Residual Shear Apparatus
Model: SX-TK-5A
Product Name : Automatic Direct Residual Shear Apparatus
1. Description:
The Advanced Shear TEST Direct/Residual Shearbox has the following features;
l Shears a sample under applied normal load along a predefined plane until it is stressed to failure
l Has inbuilt data logging for four chanels
l Is supplied complete with a lever loading device to which weights can be added, hanger and shearbox carriage all mounted on a floor standing frame
l Uses a stepper motor to apply Horizontal Load

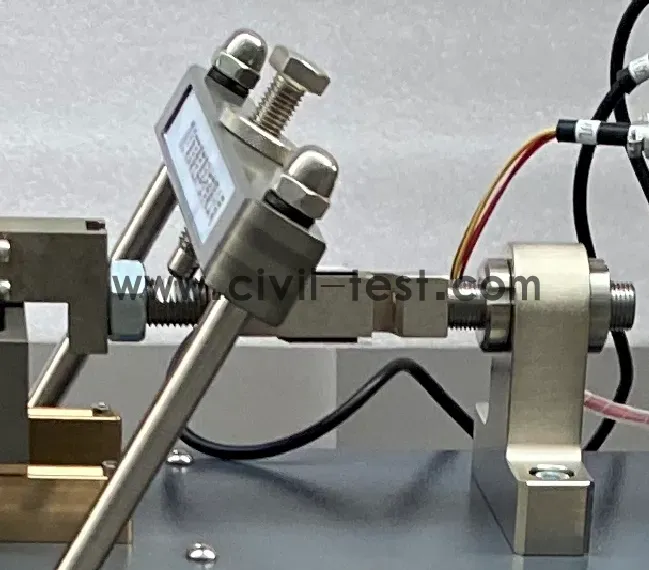

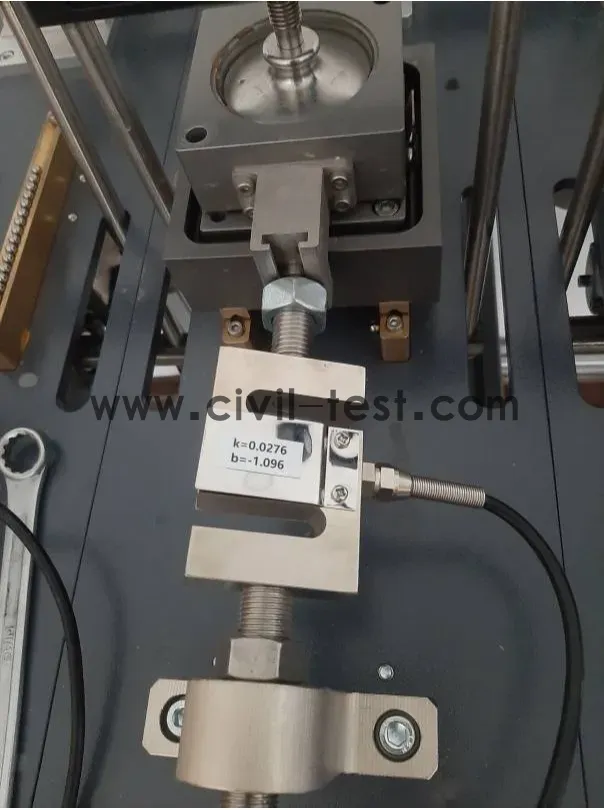

l Horizontal load can be measured with a standard load ring fitted with a mechanical or digital dial gauge or an external S-beam load cell
l Horizontal and vertical movement can be measured with a mechanical dial gauge, digital dial gauge or an LSCT displacement transducer
l Has a large graphical display with a touchscreen sensitive keypad
The controlling Clisp Studio software conforms to BS1377-7, ASTM D3080-04 & AS1289.6.2.2
2. Standards: VS1377 , ASTM D 3080
3. Specification
ITEM | Parts and Specifications |
1 | Shear Base Unit |

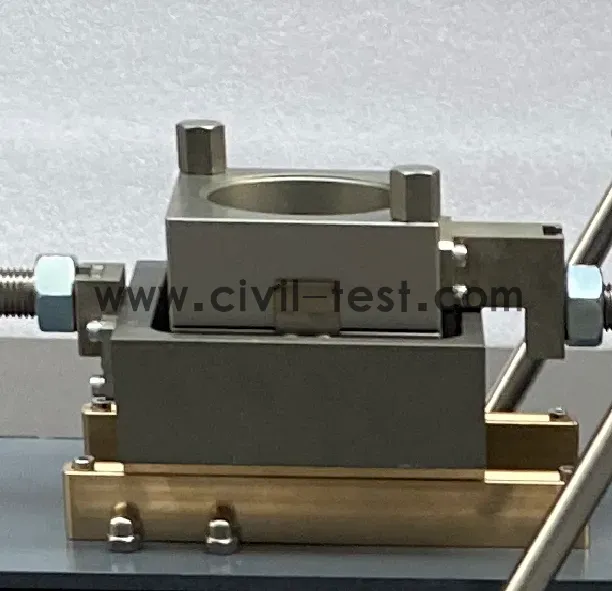

2 | Shear Box Assembly |
3 | One embedded controller for horizontal controls, including: |
4 | Load Sensor Assembly: |
5 | Vertical Displacement Transducer Assembly: |
6 | Horizontal Displacement Transducer Assembly: |
7 | Set of Weights: 50kg in total . |
8 | Special modular software in Windows (Acquisition Only): |
