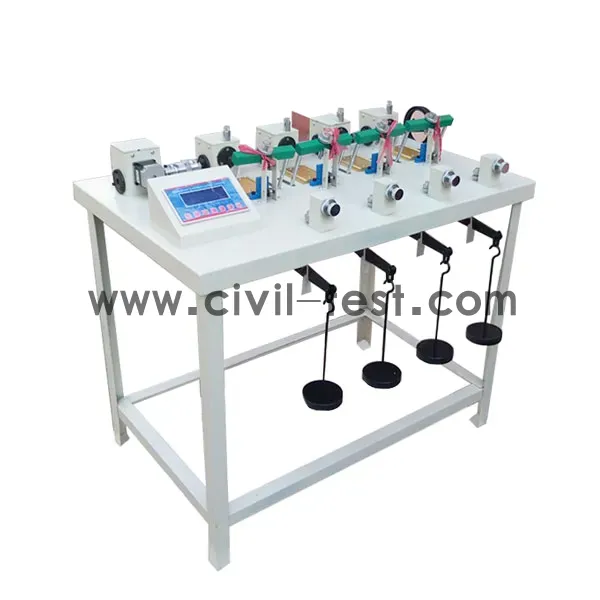

DSJ-3 Digital Quadruple Direct Shear Apparatus
Model : DSJ-3 Name : Digital Quadruple Direct Shear Apparatus
The Quadruple Shear Apparatus have 2 models for choice,
One is basic model with dial gauge 10*0.01mm with digital display screen and controller
Another is advanced model with digital gauge 12.7mm * 0.01mm , can realize test data output by USB PORT , without data acquisition device and data processing software
Model | DSJ-3 |
Name | Digital Quadruple Direct Shear Apparatus |
Type | Strain controlled |
Max vertical load | 400KPa |
Vertical loading mode | By weigh |
Vertical load grade | 50KPa, 100KPa, 200KPa, 300KPa, 400KPa |
Corresponding weight type | 1.275, 2.55, 5.1, 7.65, 10.2kgs |
Lever ratio | 1:12 |
Horizonal shear force | Max. 1.2KN |
Shear rate(mm/min) | Stepless speed regulation, with digital display controller. |
Sample area(cm²) | 30cm², height 2 CM 61.8mm Dia × 20mm Height |
Shear Box No | 4 sets |
Power source | 220V±10%, 50Hz 100W |
Packed details | |
Net Dimension(mm) | 680 x 740 x 1050(LxWxH) |
Net Weight | 200 Kg |
Case No | 1 |
