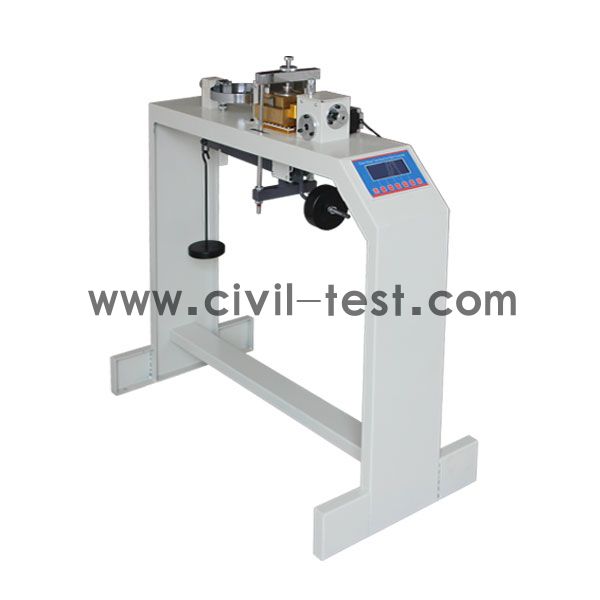

Strain Controlled Direct Shear Machine EDJ
Model: EDJ-1
Item Name : Shear Test Apparatus Series
Strain controlled direct shear machine
Descriptions:
To determine the shearing strength of the soil using the direct shear apparatus. In many engineering problems such as design of foundation, retaining walls, slab bridges, pipes, sheet piling, the value of the angle of internal friction and cohesion of the soil involved are required for the design. Direct shear test is used to predict these parameters quickly. The laboratory report cover the laboratory procedures for determining these values for cohesionless soils.
STANDARD
· ASTM D3080
· BS 1377:7
· AASHTO T236
· NF P094071-1/2
Model | EDJ-1 |
Name | Digital Direct Shear Apparatus |
Type | Strain controlled |
Max vertical load | 400KPa |
Vertical loading mode | By weigh |
Vertical load grade | 50KPa, 100KPa, 200KPa, 300KPa, 400KPa |
Corresponding weight type | 1.275,2.55,5.1,7.65,10.2kgs |
Lever ratio | 1:12 |
Horizonal shear force | Max. 1.2KN |
Sample area(cm²) | 30cm², height 2 CM 61.8mm Dia × 20mm Height |
Shear rate | 0.02, 0.8, 2.4 (mm/min) |
Power source | 220V±10%, 50Hz |
Packed details | |
Net Dimension(mm) | 850 x 550 x 1100(LxWxH) |
Net Weight | 40 Kg |
Case No | 1 |
