STCBR-1 CBR TESTING MACHINE
Model: STCBR-1 Product Name: CBR Load Frame
Application
CBR Test Apparatus is used in CBR test of various soils and mixture material ( grain size is less than 40mm ) specimens after compacted in CBR mold so as to confirm the carrying capacity of the pavement surface, pavement base and sub-base materials to be designed ,

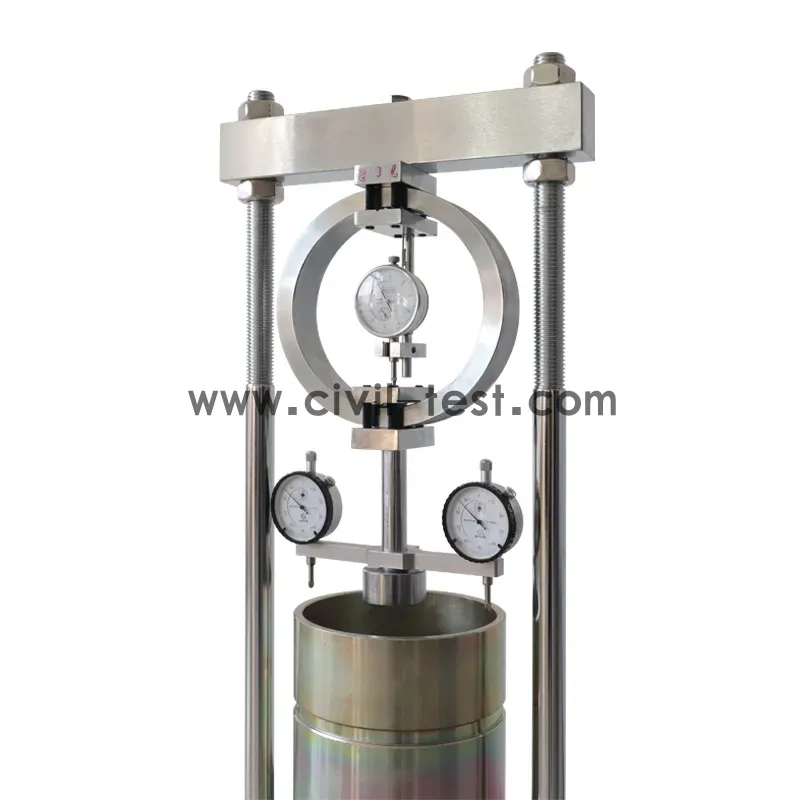

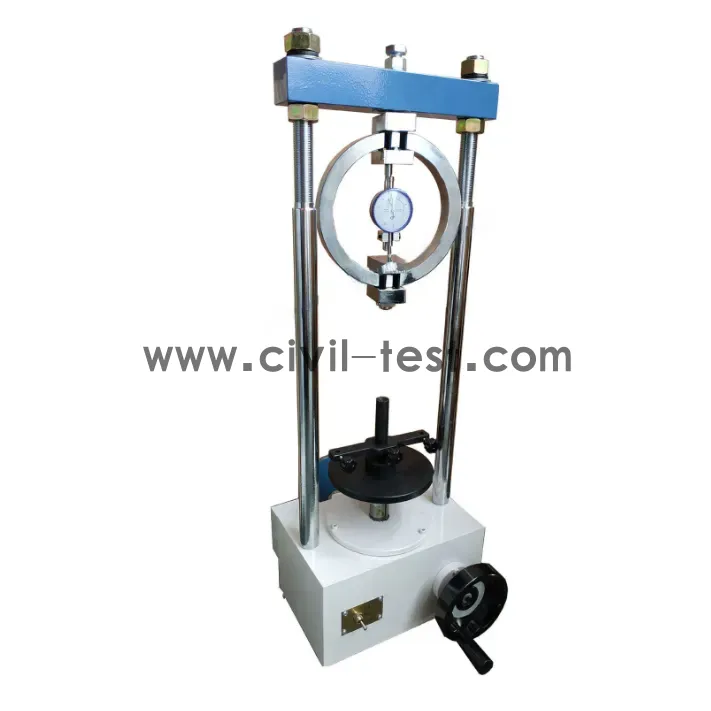

The apparatus consist of CBR load frame, proving ring , penetration rod , load plating plate, micrometer and swell increment test device etc, it has features like small volume, high pressure and easy operation ,
Standard: BS 1377; 1924; EN 13286-47/ ASTM D 1883; AASHTO 193
Main Specifications :
Product Name | Mechanical CBR Load Frame |
Model | STCBR-1 |
Standard | ASTM D1883 BS 1377:4 AASHTO T193 |
Capacity | 50Kn |
Load Speed | 1mm/min |
Penetration rod | 50mm Dia × 100mm |
Working table | 170mm Diameter |
Specimen mold | 152mm Dia × 170mm height |
Stroke of working table | 50mm |
Voltage | 220V 50HZ |
Adjustable testing space | By hand-wheel |
Operating way | Both manual and motorized |
Optional parts | |
Prove Ring 30KN | 1pc |
Dial gauge 10mm | 1pc |
Prove Ring 50KN | 1pc |
Packed details | |
Dimension | 75*65*115cm |
Gross weight | 68kg |
No of pkg | 1 |
