Sand Cone Density Apparatus
Model: GSF-4A Name: Sand Cone Density Apparatus
Meeting standard : ASTM D 1556
Description

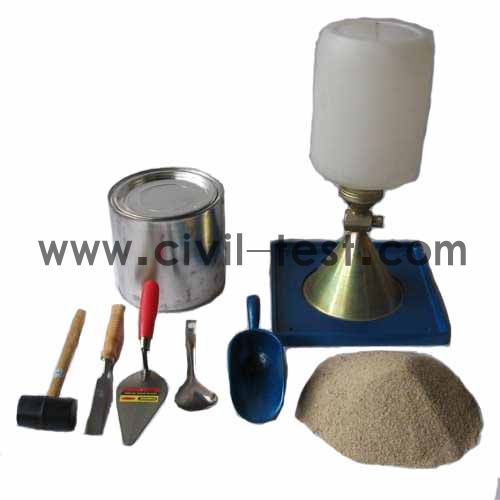

The sand cone density apparatus is comprised of base plate, funnel, cylinder, valve, the base plate can be made of plastic, iron, aluminum. The sand cone set is an easy used apparatus to test the soil density at field.
Technical specifications
Product Name | Sand Cone Density Apparatus |
Model | GSF-4 |
Meeting standard | ASTM D 1556 |
Cylinder volume | 4L |
Cylinder weight accuracy | ±5g |
Funnel height | 135mm |
Overall dimension | 300 x 300 x 445mm (L x W x H) |
Net weight | 1.5Kg |
