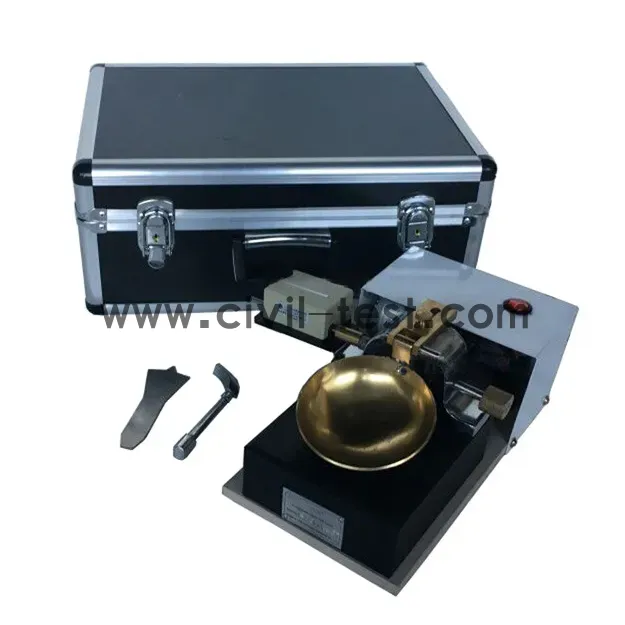

Motorized Liquid Limit Test Apparatus
Model: DS-1B Name : Motorized Liquid Limit Test Apparatus
Detailed Product Descriptions
1. Description:
Used to determine the moisture content at which clay soils pass from a plastic to a liquid state. It helps in the classification of soil when comparing the potential properties of soil material against empirical data
2.Standards: BS 1377:2, ENV 1997-2, ASTM D4318, AASHTO T89 NF P94-051
3.Packing details
Overall dimension: 560 x 450x550 mm
Weight Appx: 8kg
Packing material : plywood case outside,
4. Main Specifications
1 | Parts Name | removable brass cup, adjustable crank and cam mechanism, blow counter and base |
2 | Disc material | Brass |
3 | Falling height | 10mm |
4 | Working times | 120times/min. |
5 | Grooving tools | ASTM and BS |
6 | Standard | BS1377:2 ASTM D4318 |
7 | Carrying case | Aluminum carrying case |
