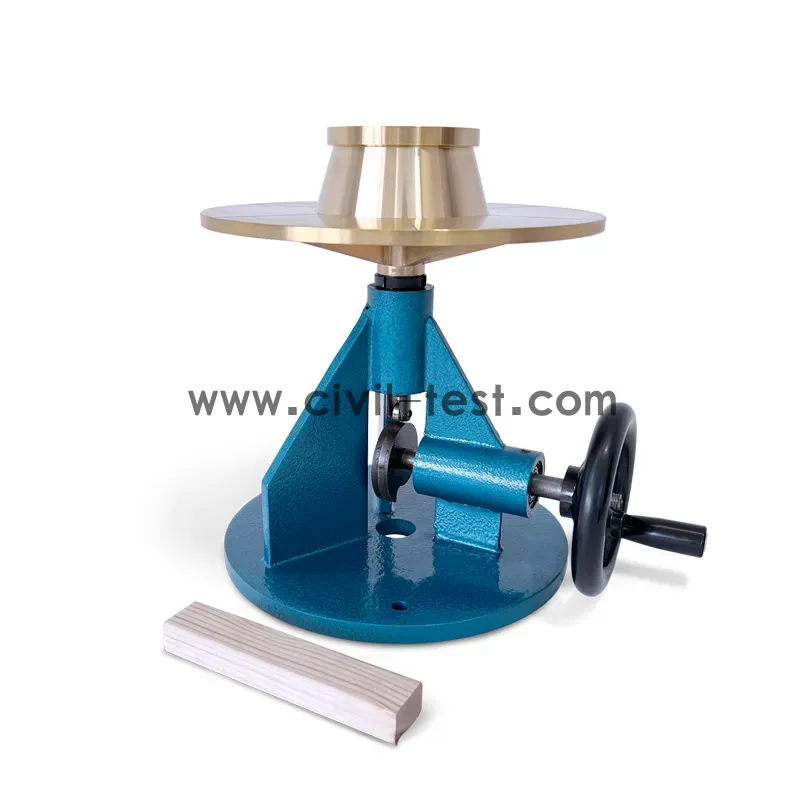

Manual Cement Flow Table
Model: NLD-1A Product Name: Manual Cement Flow Table
Detailed Product Description:
A specimen contained in a cone mould is placed on a metal surface which then is raised and dropped from a known height after releasing the specimen from the mould.
Cement concrete flow table, manual flow table apparatus
Meeting standard : ASTM C230
Main Specifications
Total Weight of Pulsatory Part | 4.35Kg±0.15Kg |
Drop height | 10mm±0.2mm |
Diameter of table | 300mm±1mm |

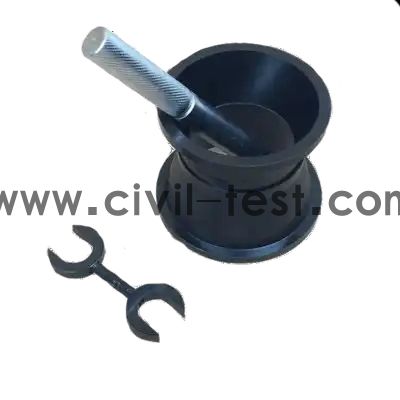

Flow mould | 70mm and 100mm diameter X 60mm deep |
Tamper | 20mm diameter, 200mm long |

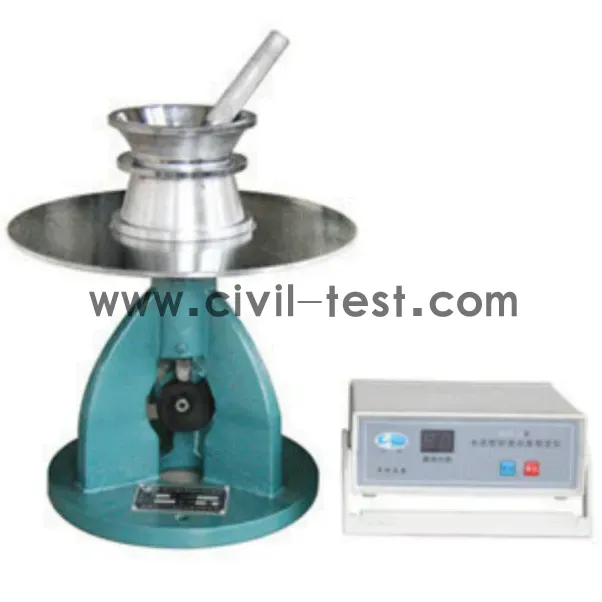

· Motorized flow table FT-A

Weight of vibrating part: 4.35±0.15 kg
Height of drop: 10±0.1 mm
Vibrating frequency: 1 HZ
Working cycle: 25 S
Table diameter: 300±1 mm
· Flow mould dimension: 100 mm base dia. x 70 mm top dia. x 60 mm high
· Motor Power: 220V, 50Hz
Dimension: 400×400×690 mm
Net weight: 25 kg
