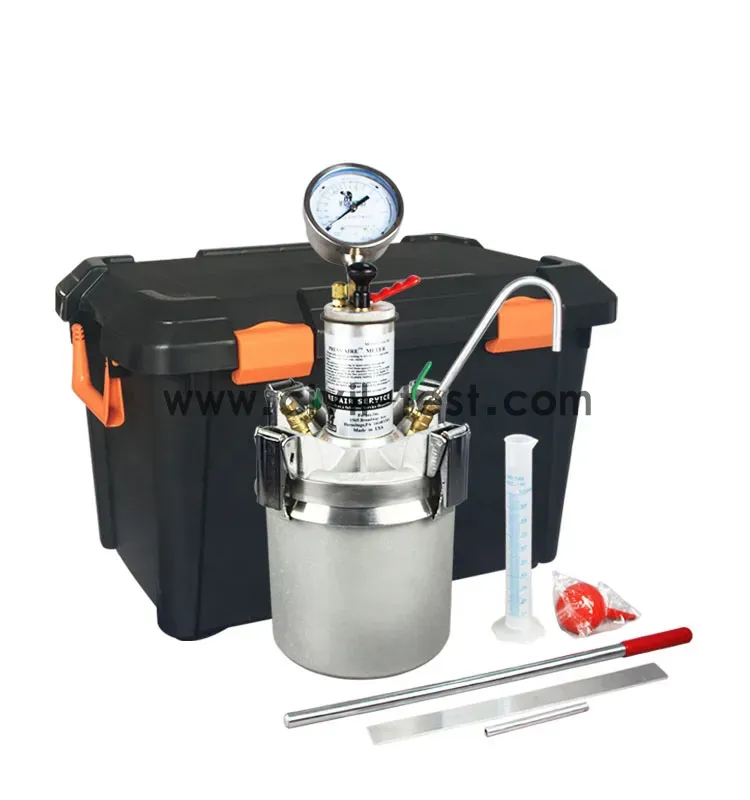

LA-316 Air Content Meter
Model : LA-0316 Name : Concrete Air Content meter
1. Description:
Application :
It consists of aluminum cylindrical vessel wth airtight cover assembly incorporating an air pump , precision pressure gauge 90mm dia and valves
2. Standards: Meets ISO EN12350-7 ASTM C231 AASHTO T152 .
3. Specification
3.1 Volume of cylinder :7 L
3.2 Measuring range of air content :0-100%
3.3 Max. size of aggregate:≦90mm
3.4 gauge graduations : 0.1% up to 6% of the scale; 0.2% from 6% to 10% of the scale
