Concrete Elastic Modulus Tester
Model: TM-IIA / TM-IIB
Name: concrete cylinder compressometer-extensometer
Descriptions
Elastic modules of concrete are used for determining the axial deformation and
diametrical extension of concrete cylinder specimens during the compression test.
TECHNICAL PARAMETERS
Dial gauge: 1mm, 0.001mm
Distance from upper ring center to bottom ring center: 150mm
Specimen size suitable: cylinder specimen: dia.150x300mm; beam specimen: 150x150x300mm; beam specimen: 100x100x300mm

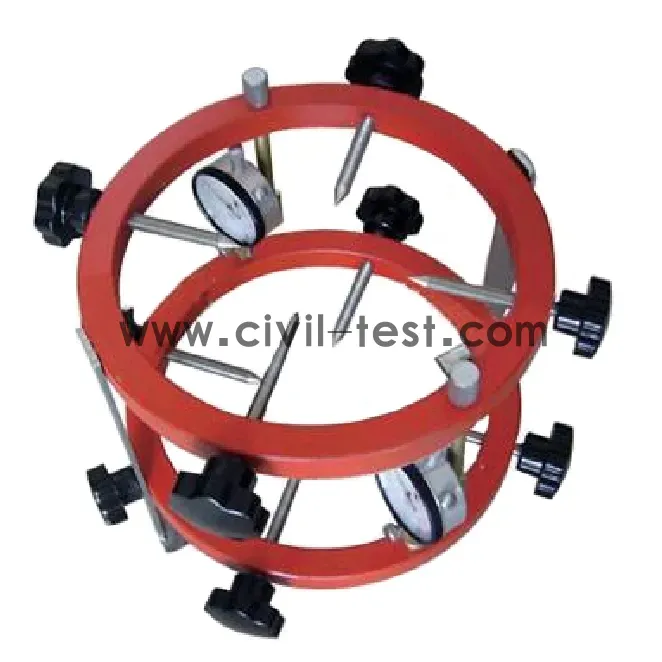

TM-IIA Elastic Modulus Tester

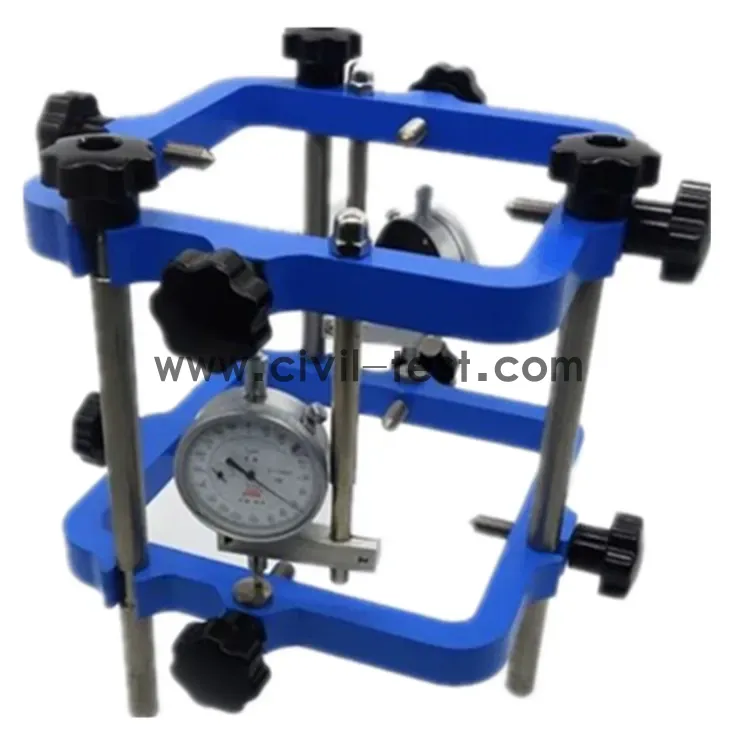

TM-IIB Elastic Modulus Tester
