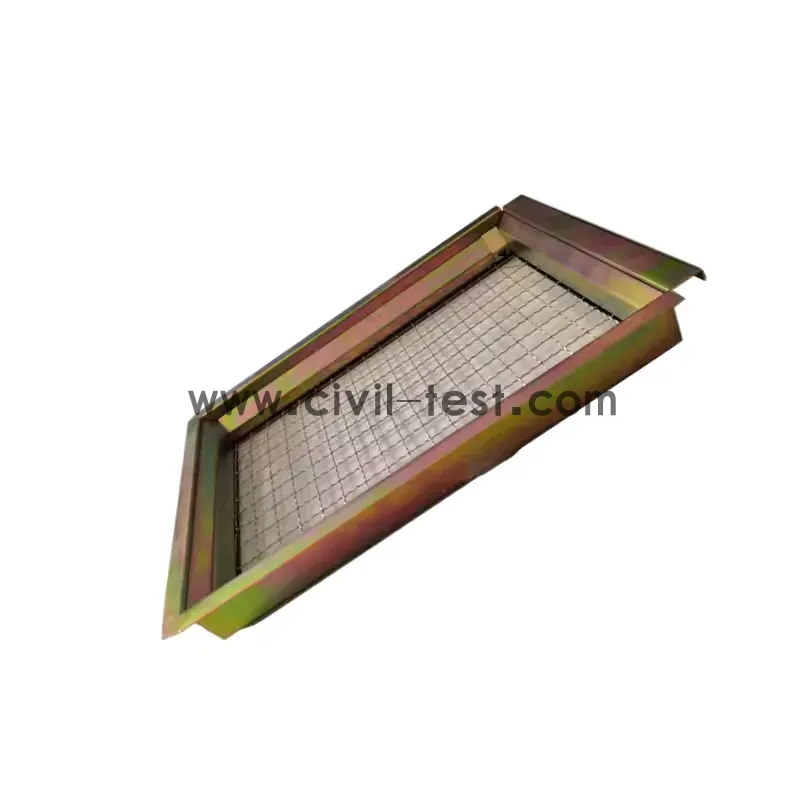

ASTM Testing Screen Trays
Compliance grade ASTM E11 Screen Trays are for use in High capacity sieve shaker. Screen Trays
feature welded and bolted heavy gauge painted steel construction
and are fitted with ASTM E11 Compliance Grade wire cloth. Screen trays cloth material is stainless steel and are available with opening sizes ranging from 5in to No. 400 (125.0mm to 38µm).
Screen Trays with opening sizes from No. 16 to No. 200 (1.18mm to 75µm)
include metal support ribs installed to support the fine mesh. Screen tray units are individually serial numbered and supplied with certificates of manufacturing conformance.
Specifications:
Tray Type | Full Tray |
ASTM E11 Opening Size | FULL |
Clear Screen Size of Trays | 14.75 x 22.75in (375 x 578mm) WxD |
Dimensions | Cloth Only: 16 x 24in (406 x 610mm) WxD |
Cloth Material | Stainless Steel |
Product Dimensions | 17.75 x 26.25 x 2.625in (451 x 667 x 67mm) WxDxH |
Estimated Shipping Weight | 8.16kg |
