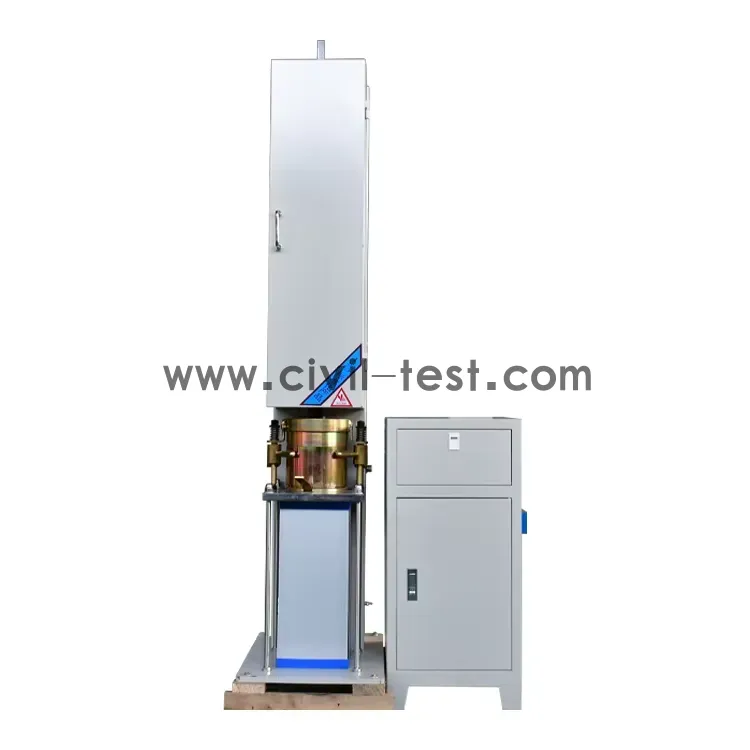

Asphalt Compactor Marshall Compacting Machine
Model: CSMJ-1A Lab Automatic Marshall Test Compactor
USAGE OVERVIEW:
Marshall compaction tester is a special instrument for the sample forming in the Marshall stability test of asphalt mixture.
Its structure and performance fully meet the requirements of highway test regulations.The instrument is small in size,
easy to operate, reliable in work, can realize automatic technology, automatic compaction, automatic stop,
and can realize the suspension of operation in work.Suitable for laboratory work and field work.
PRODUCT FEATURE:
1. Can realize automatic counting, automatic compaction, automatic shutdown.
2. With hanging hammer seat and manual handle, can easily lift the hammer.
3. Semi-automatic die pressing device, It is more convenient to pick and place the mold.
4. Integrated hammer head, won't fall off, won't break or crack.
5. Small size Marshall test mode and large Marshall test mode can in common use.
Model | CSMJ-1A |
Product Name | Marshall Compactor |
Standard | Standard hammer |
Drop Height | (457±1.5) mm |
Compact speed | (60±5) mm/min |
Preset times | 0-999 times |
Hammer weight | 4536±9g (10210g±9g as optional ) |
Dia of compact mould | 101.6mm ( 152.4mm optional ) |
Voltage | 220V 50HZ 1phase |
Product size | 650×570×1800mm |
Net weight | 175kg |
