Accelerated Polished Testing Machine
Item No : SLR-T0321D Name: Accelerated Polished Testing Machine
Detailed Product Descriptions:
For paving stones and paving blocks

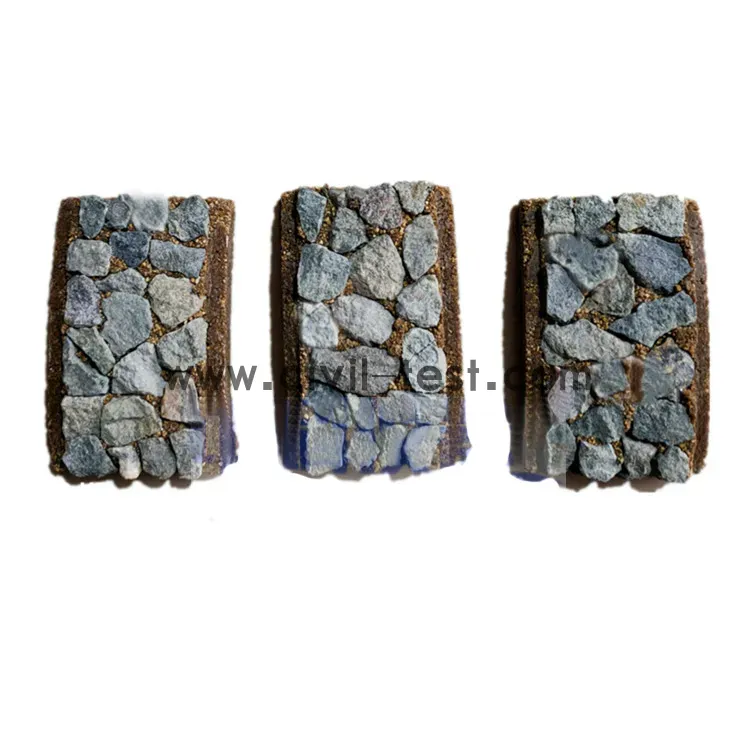

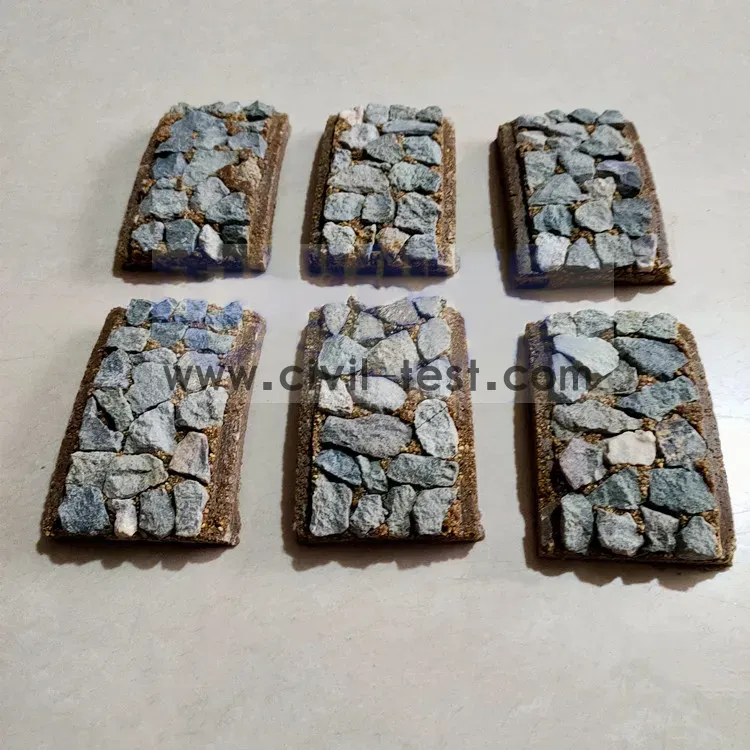

Used to measure the resistance of road stone to the polishing action of vehicle tires on a road surface. This machine provides a method of preparing polished stone specimens for use with the friction tester when used in a laboratory environment.
Standard: EN 1097-8, EN1341 1342 1343
Features:
Full-closed structure , same as international model
Adjustment of motor is realized by touch-button and digital
With mixing device for fine and coarse aggregate
Auto stop each 1 hour’ working
Auto alarm each 1 hour’ working
Heavy steel cylinder and base frame. Includes steel tray for specimen unloading
Full length opening with protective cover.
Specifications:
Product Name | Accelerated Polished Testing Machine |
Model | SLR-T0321D |
O.D OF Pavement wheel | 406mm Diameter |
Working rate of wheel | 320r±5r/min |
Dia of rubber wheel for fine and coarse sand | 200mm |
Width of rubber wheel for fine and coarse sand | 44mm |
Initial hardness of rubber wheel | 69±31RHD |
Pressure of rubber wheel on pavement wheel | 725N ±10N |
Working rating time | 57600r( 3 hours ) |
Voltage | AC 380V 50HZ 1phase 400W |
Packing details | |
Dimension | 550*630*1650 |
Product Weight | 356kgs |
