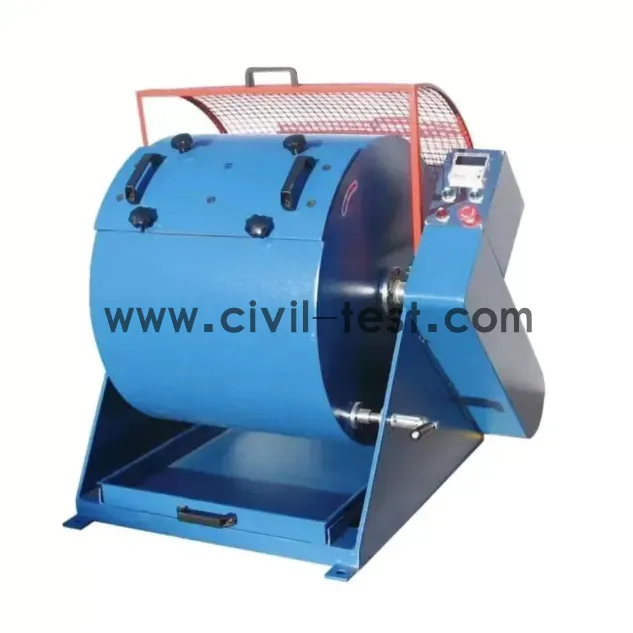

ASTM C131 ASTM C535 Los Angeles Abrasion Testing Machine
Item No : MH-III Name: Los Angeles Abrasion Testing Machine
Detailed Product Descriptions:
Used to measure the degradation of mineral aggregates of standard gradings resulting from a combination of actions including abrasion or attrition, impact, and grinding in a rotating steel drum containing a specified number of steel spheres.
Consists of a hollow steel cylinder, with a wall thickness of 12 mm (1/2”) closed at both ends having an inside diameter of 711 mm (28”), and an inside length of 508 mm (20”).
Standard: EN 1097-2, ASTM C131 ASTM C535
Features:
Supplied with an automatic digital counter that shows the number of revolutions for the drum
Provided with a cover and a safety stop button is prominently positioned.
The machine is fitted with a revolution counter and steel tray for specimen unloading.
Supplied with 1 set abrasive charges meet ASTM and EN standard.
One set of 12 abrasive charges: 1.13/16” (7 pcs) and 1.7/8” (5 pcs) (ASTM, C.N.R),
Or one set of 12 abrasive charges: 1.7/8” (EN)
Heavy steel cylinder and base frame. Includes steel tray for specimen unloading
Full length opening with protective cover.
Specifications:
Model | MH-III |
No of standard cylinder | 1pcs |
Size of standard cylinder | 711mm ID x 508mm length |
Material for cylinder | rolled steel material |
Abrasion sphere material | steel material |
Rotating speed of steel drum | 31-33rpm |
Thickness of steel plate | 12mm |
Voltage | 380V 50HZ 3phases |
Optional Voltage | AC 220V 50HZ 1phase |
Optional Voltage | AC 220V 60HZ 1phase |
Packing details | |
Dimension | 950*1050*1050 |
Product Weight | 356kgs |
