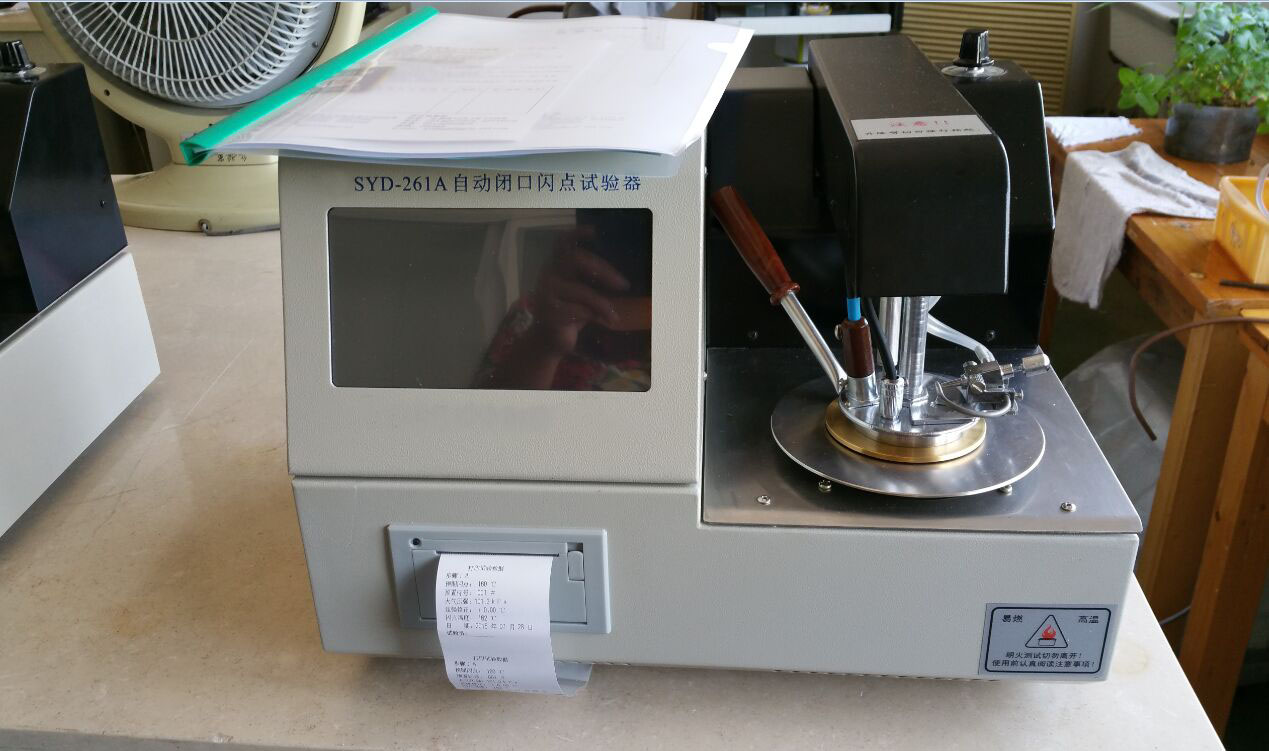

SYD-261A Automatic Pensky-Martens Closed-Cup Flash Point Tester

  • Description:
  • Product Introduction

Summary

    This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point

- Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

It is used to make determination of the closed cup flash point of the petroleum products.

Main technical features

1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu.

2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified.

3. 120 groups of data can be saved.

4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure.

5. Differential detection. Automatic correct the system bias.

6. Automatically open cover, ignite, detect and print result.

7. Safe and easy to operate.

 Main technical specifications

1. Power supply: AC(220±10%)V,  50Hz.

2. Flash point determination:Range: Ambient to 300℃.

Meet requirement of GB/T 261-2008   Resolution: 0.1℃

3. Heating rate: Procedure A: (5~6)℃/min

                          Procedure B:(1~1.5)℃/min

                          Automatic control and manually adjustable.

4. Stirring rate:Procedure A: (90~120)RPM,

                        Procedure B: (250±10)RPM

                        Automatic control and manually adjustable.

5. Igniting mode:Igniting source: gas(or other civilian fuels)

                          Electric ignition. Gas flame diameter:3.2mm~4.8mm

SYD-261A--Automatic-Pensky-Martens-Closed-Cup-Flash-Point-Tester-Customized
