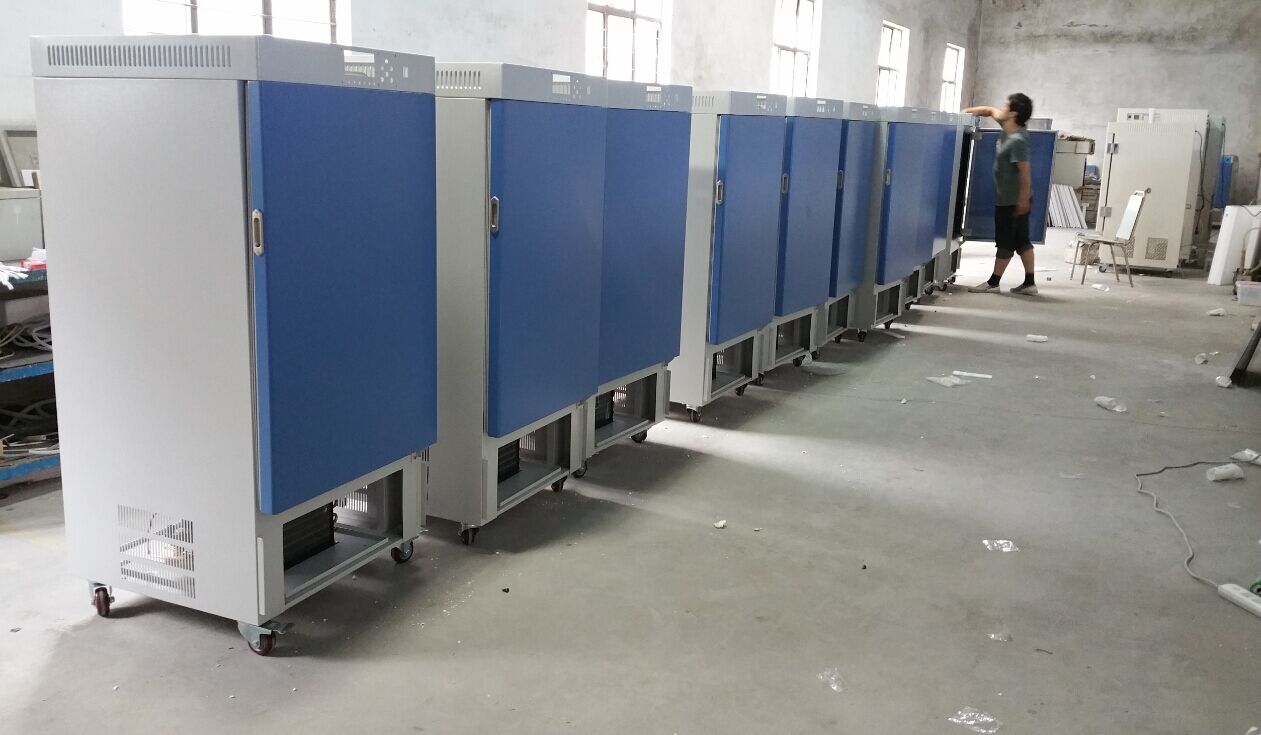

Precision Drying Oven

Description:
Precision model

304 mirror inner chamber

Large LCD display screen .
Imported German Blast Blower .
Menu Controlling Panel .
Patent wind tunnel cycle system , automatic exhaust moisture
Protective function of over-temp and error ,

Previous : Circular Low Temp Water Bath

Product Introduction

Product Features :
Large LCD display screen
Imported German Blast Blower
Menu Controlling Panel
Fast and Slow Blast controlling
Patent wind tunnel cycle system , automatic exhaust moisture
Protective function of over-temp and error ,
Digital microprocessor controlling , PID core processor
Preset time
Mirror 304# stainless steel inner chamber , free assemble and disassemble grid , semi-sphere 4-agle design for easy cleaning
Cold-rolled steel plate , surface electrostatic spray , thick additional design between inner chamber and door keep steel outside from high temp when continous working way
New silicon ring from heat loss , save 30% consume power ,
Separate Alarm function and limit temperature (Optional )
RS 485 interface
Optional parts :

BPG -A	Intelligent PID controller
BPG -B	Separate limit temp controller
BPG -C	Built-in printer
BPG -E	Measuring hole 25mm
BPG -F	Measuring hole 50mm
BPG-H	RS485 interface and software system

Model Form :

Specification/ Model	BPG -9070A	BPG -9140A	BPG -9240A	BPG -9420A	BPG -9620A	BPG -9920
Voltage	AC 220V 50HZ			AC 380V 50HZ
Range of control temp	RT+10 ~ 300℃
Floating of constant temp	±0.5℃
Temp Frequency	0.1℃
Input power	1100W	1500W	2050W	3500W	4000W	6000W
Chamber /CM	40×43×45	45×55×55	50×60×75	60×64×129	80×64×129	100×60×160
Net size	56×59×80	68×80×121	68×80×121	78×75×185	98×75×175	118×80×215
Volume	80L	136L	225L	420L	620L	1000L
Grid No	3PC
Preset time rang	1~9999MIN
