Forced Blast Drying Oven

  • Description:
  • Blast forced Drying Oven

    Economical and normal model

    304 mirror stainless steel material chamber

  • Product Introduction

Product Features :
Large LCD display screen
Menu Controlling Panel
Fast Blast controlling
Patent wind tunnel cycle system , automatic exhaust moisture
Protective function of over-temp and error ,
Digital microprocessor controlling ,
Preset time
Mirror 304# stainless steel inner chamber , free assemble and disassemble grid , semi-sphere 4-agle design for easy cleaning
Cold-rolled steel plate , surface electrostatic spray
Separate Alarm function and limit temperature
Optional parts :

DHG-A

Intelligent PID controller

DHG-B

Separate limit temp controller

DHG-C

Built-in printer

DHG-E

Measuring hole 25mm

DHG-F

Measuring hole 50mm


Model Form :

Specification/ Model

DHG-9030A

DHG-9050A

DHG-9070A

DHG-9140A

DHG-9240A

DHG-9240B

Voltage

       AC 220V 50HZ

Range of control temp

       RT+10 ~ 280

Floating of constant temp

       ±1

Temp Frequency

         0.1

Input power

 850W

1100W

1550W

2050W

2500W

2500W

Chamber /CM

34×33×32

42×35×39

45×40×55

55×45×55

60×60×65

60×60×75

Net size

63×54×52

71×62×53

74×62×63

64×67×73

88×80×83

88×80×93

Volume

 30L

  50L

 80L

 136L

 220L

 260L

Grid No

                        2PC

Preset time rang

                        1~9999MIN

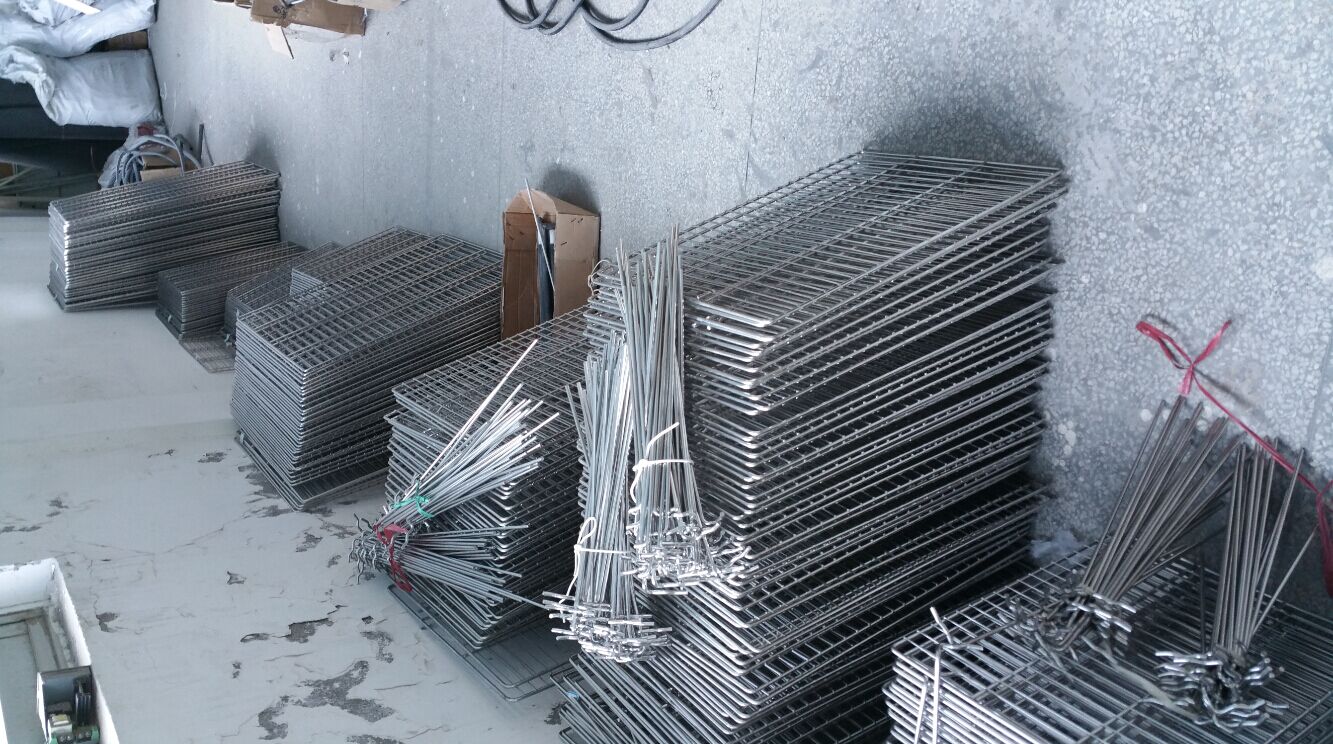

Forced-Blast-Drying-Oven-In-China

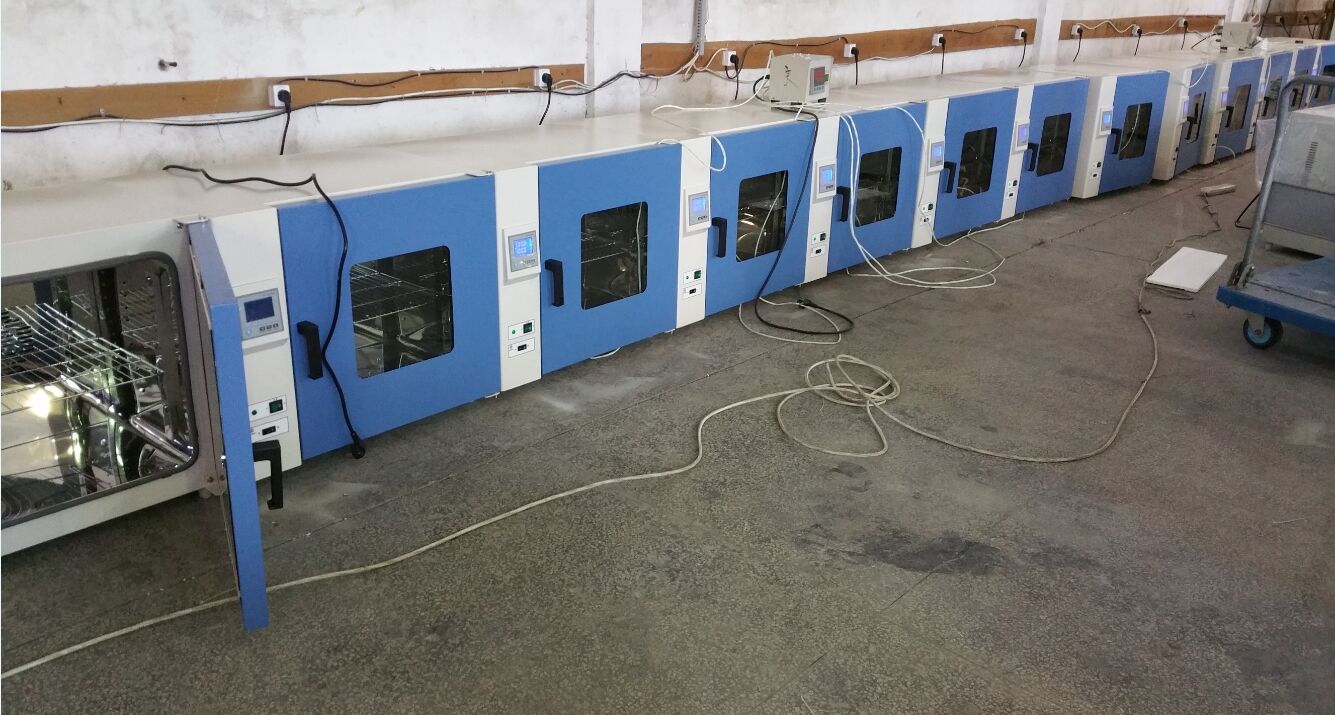

Forced-Blast-Drying-Oven-In-China

Forced-Blast-Drying-Oven-Widely-Used
