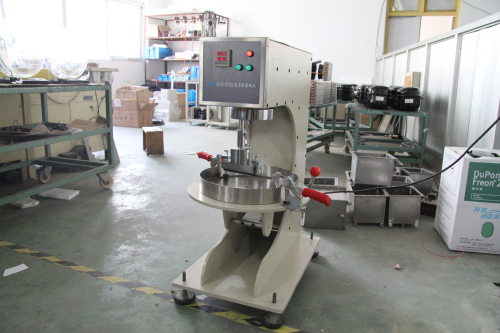

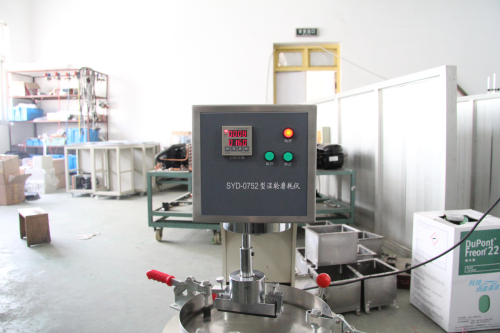

Wet Abrasion Testing Machine for Asphalt Mixture

Description:
REFERRING STANDARD : JTJ052-2000 T0725

it is used to decide the preferred asphalt content in the slurry seal mixture together with loading wheel rolling tester.

Next : Asphalt Tensile Testing Machine

Product Introduction

Summary
The instrument is designed and made as per T0752 “Emulsified Asphalt Slurry Seal Mixture Wet Wheel Abrasion Loss Test” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine resistance to abrasion loss of shaped emulsified asphalt slurry seal mixture. it is used to decide the preferred asphalt content in the slurry seal mixture together with loading wheel rolling tester.

Rotation speed of motor	1400 RPM;
Voltage	220 V, 50 Hz;
. Total power consumption	not more than 0.38 kW;
Rotation speed of grinding head	140 RPM;
Revolution speed of grinding head	61 RPM;
Weight of grinding head	2.27 kg (working weight);
Length of rubber tube of grinding head	127 mm;
Timing performance	5 minutes
Product Size	600×480×845 (L×W×H) (mm);
Total weight	260 kg;
