SYD-0165A Vacuum Distillation Apparatus

  • Description:
  •

    Summary

        This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process. It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.

  • Product Introduction
  • Specification

MODEL: SYD-0165A   Name : Vacuum Distillation Apparatus

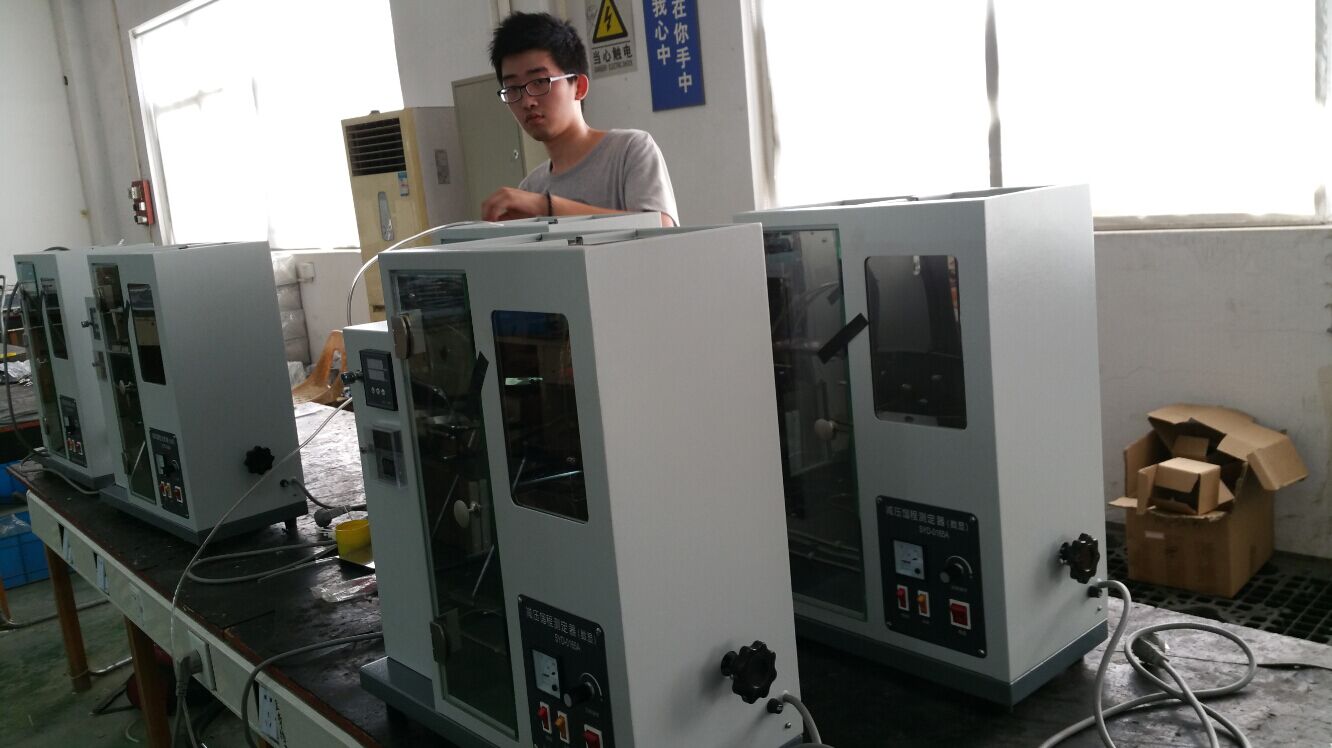

SYD-0165A---Vacuum-Distillation-Apparatus-In-China



Main technical specifications

1. Power supply:AC (220±10%) V, 50Hz

2. Heating power:Heater for distillation flask:1000W,Heater for receiver:350W

3. Heating furnace of distillation flask:(0~1000)W, adjustable

4. Temperature control point of air bath of receiver:Ambient to 100℃, adjustable

5. Temperature sensor of air bath:Pt100, RTD

6. Temperature control mode:Digital temperature controller

7. Temperature control precision:Set temp.±1℃

8. Capacity of buffer vessel:1000ml

9. Max. residual pressure:2mmHg

10. Digital pressure gauge:(0~200)mmHg

11. Illumination light in the air bath :Energy saving lamp

12. Working condition:

   Ambient temp.: (5~35) ℃    RH:  < 85%
