Prove Ring

  • Description:
  •  Product Description ;

     The Load Ring with or without Dial Gauge supports the following standards: ASTM E74

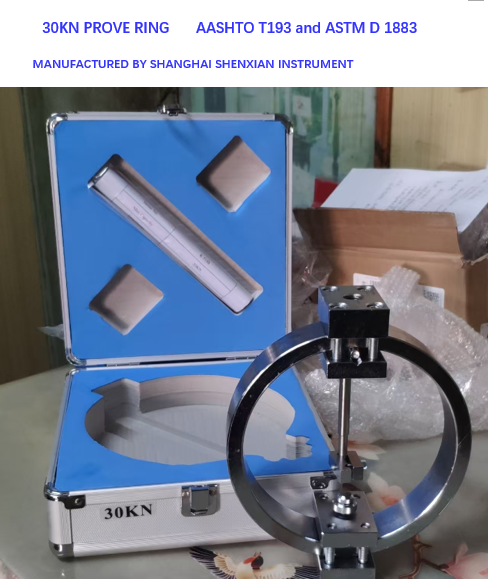

    Sometimes called "Proving Rings," Load Rings are used with various asphalt, concrete, or soil instrumentation to measure loads, and are

    ideal for use with our MasterLoader compression machines, Direct Shear machines and other testing equipment. Our high quality tensile steel rings have spherical

    seatings suitable for all shear boxes and load frames. Each load ring is shipped with a fitted dial gauge and calibration certificate, and supplied with tables listing all

    measurement units.

  • Product Introduction

Optional Normal rang :

Optional rang :

    laf

    kn

     kgf

    Model

 110

 0.5

 50

H-4454.001

 220

 1.0

 100

H-4454.002

 550

 2.5

 250

H-4454.005

 660

 3.0

 300

H-4454.003

 1100

 5.0

 500

H-4454.010

 2200

 10.0

 1000

H-4454.020

 5500

 25.0

 2500

H-4454.050

 6160

 28.0

 2800

H-4454.028

 6600

 30.0

 3000

H-4454.030

 11000

 50.0

 5000

H-4454.100

 22000

 100.0

 1000

H-4454.200

Prove-Ring-Cheap

Prove-Ring-Best-Price

Prove-Ring-For-sale
