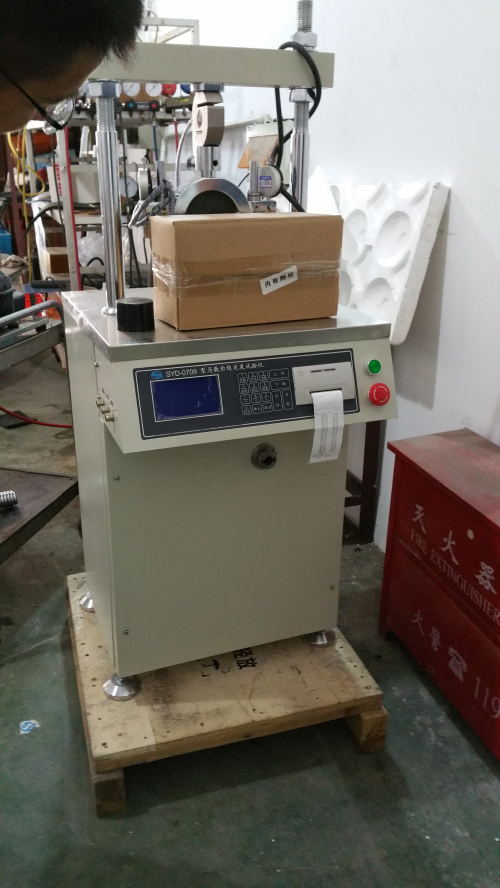

Bench Marshall Tester (Automatic model )

  • Description:
  • STANDARD: EN 12697-34 , EN12697-23  EN 12697-12 , EN 13108.  ASTM D1559, AASHTO T245 , BS598:107,

     50KN TEST FORCE , Automatic or manual working model,  RS232 communication port ,  with real-time detecting function , peak value keeping, automatic print test curve , power-off protection, with storing and checking

  • Product Introduction

STANDARD :  JIJ052-2000  T0709-2000

Technical features :



1.It adopts high light LCD screen, light-touch panel switch, and the test data display is clear and it is easy to operate.

2.It is equipped with serial communication port and it can realize the communication of the computer.

3.It is equipped with 24 character/line micro-printer that can print out the results; it is also equipped with A4 printer according to the requirement of the customers.

4.It has three high speed A/D converters, the speed of sampling interval is 100 times/min, the sampling accuracy is high, the data is correct and reliable.

5.It adopts double electronic displacements, four digits display and the data is also correct and reliable.

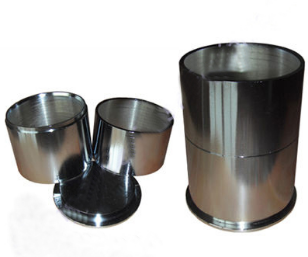

6.It equipped with Φ100mm standard Marshall sample pressure head.

Model

SXD- 0709

Digital Display

LCD  English data

Range of load force

0- 50kN  0.01KN , measuring error:+0.05%(F.S)

Rang of displacement

0-10.0mm  measuring error:+0.5%(F.S)

.Loading mode:

automation and manual

Measuring bias

≤±0.1kN

Overload protection

 Automatically protect when load is over 39kN

vertical deformation(flow value)

 Range 0~20mm, bias ≤±0.05mm

Lifting rate for pressure machine

 (50±5) mm/min

Communication port

RS232

Voltage

 AC  220V(-5%~+10%),50Hz  special order

AC  380V(-5%~+10%),50Hz   normal voltage

Remarks :

1. the model can connect with PC computer by communication interface ;

2. we can supply video

3. we support checking service before delivering goods
